20-Tonne Hanging Portal Lift
ALLAERT FILIP b.v.20-Tonne Hanging portal lift
Application

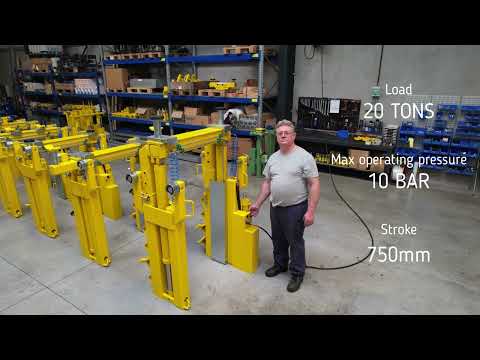

This hanging portal lift 20T offers the ergonomic advantages of a floor jack and has an adjustable cross beam. It has a very high lifting speed and can lift 20 tons effortlessly, both in the middle and on the left and right of the jack. Due to the extendable upper part with standard included lifting parts, almost all vehicles with a low structure can be lifted. When the vehicle is lifted, it is easy to walk under the lift.
Minimum pit depth: 1400 mm.
Including:
- Stable V-Blocks
- Pickup plate for central lifting
- Extension parts of 50 & 100 mm
- Rubber lifting points
- Spring return + additional mechanical locking of the cylinders
Version
-
Minimum height retracted: 1400 mm
-
Stroke: 750 mm
-
Maximum working pressure: 10 bar
-
Supplied as standard with lifting plate, 2 V-blocks, 2 rubber lifting points and 2 extension parts of 50 & 100 mm
The jack is equipped as standard with extendable pieces for a wider lifting surface and with safety pins for mechanically locking the axles.
RAL colors
- RAL 1023: traffic yellow
- RAL 3000: flame red
- RAL 5010: gentian blue
- RAL 6011: reseda green
- RAL 7016: anthracite green
- RAL 9005: jet black
Other colors available on request.
Specifications
- Fully automatic
- All accessories within reach
- Lift wider than the pit
- Unique valve system
- Proven durability
- Easy under-vehicle clearance
- Article code: PRT20
Performance specs
- High-speed motor with a lifting time of 0,25–0,5 cm/s
- Unloaded lifting speed: 4.7 cm/s
- Unloaded descending speed: 5.7 cm/s
- Equipped with spring return and extra mechanical blocking of the cylinders
Technical specs
- Lifting height: 750 mm
- Minimum pit depth: 1400 mm
(shorter possible on request) - Minimum pit width: 900 mm
- Pneumatic pressure: 10 bar
Technical data sheet
Outstanding properties
Exceptional speed
* High-speed motor with a lifting time of 0,25–0,5 cm/s
* Unloaded lifting speed: 4,7 cm/s
* Unloaded desc. speed: 5,7 cm/s
Heavy duty
* Lifts 20 tonnes effortlessly
* Designed for heavy, low-floor vehicles (such as buses)
* Easy under-vehicle clearance
Ergonomic Design
This 20‑tonne hanging portal lift delivers the ergonomic benefits of a floor jack and has an adjustable cross‑beam.
Made in Belgium
Allaert Filip b.v. is a Belgian family-owned company. All our portal lifts are completely produced in-house.
Several RAL colors
All our hydraulic garage jacks for the lifting of trucks and busses are available in different RAL colors.
Professional advice
According to the type of inspection pit or application, we propose the most suitable hydraulic jack.
Contact us for more technical information!
